SCOPIA 400/1000 MCU Series

Product Description

RADVISION’s SCOPIA 400 and 1000 MCU Conferencing Platforms offer Reliable and Highly Scalable Visual Communication Infrastructure Solutions for Enterprise and Service Provider Environments. The SCOPIA 400 and 1000 are Custom Configurable Systems with Interchangeable Function Blades.

Reliable and highly scalable visual communication infrastructure solutions for enterprise and service provider environments, RADVISION’s SCOPIA conferencing platforms offer the industry’s most technologically advanced and easy-to-use carrier-grade multipoint infrastructure for real-time conferencing over any network, protocol and device. Easy to use plug and play functionality minimizes initial setup time,  and offers unmatched flexibility.  High Definition (HD) is standard on each system, enabling High Definition at 720p, H.264 with up to 30 frames per second of perfect quality video.

• Carrier-Class Reliability – Designed for reliability with available redundant power supplies and hot-swappable components
• Highly Scalable – A wide range of systems is available from small systems to supporting hundreds of ports for growth
• Unmatched Flexibility - HD and standard room systems, 3G mobile and audio conferencing flexibility in a single system
• Optimized Capacity – Each conferencing application efficiently uses processor power for the most effective cost per port based on the processing requirements
• Advanced Video Processing - Tanscoding and rate matching allows each user toconnect at their own available capabilities
• Ease of Use – Administrators enjoy out-of-box, plug and play functionality that minimizes initial setup time.  Users easily control the conference from the endpoint’s remote control.

SCOPIA 400/1000 MCU Highlights

• Custom configured systems
• HD continuous presence video – H.264 @ 720p up to 30fps, 1080p switched
• Native H.323 and SIP, H.320 and H.324-M with internal SCOPIA Gateway blades
• Full suite of audio and video codecs supported including transcoding
• H.239 for data collaboration

SCOPIA 400/1000 Components

SCOPIA 1000 Chassis

• High Capacity, High Performance: 18 slot chassis providing up to hundreds of concurrent sessions in a single system with a variety of available processing and connectivity Blades
• Carrier Class multi-layer redundancy for guaranteed up-time with hot swappable components that can be replaced without turning the system off
• N+N redundant power supplies with redundant power inputs
• Standard IP backplane allowing failover to blades in an external chassis
• Secure with separation of management and media traffic using separate internal switch connections
• Highly Serviceable with all  Field Replaceable Units (FRUs) serviceable from the front (excluding Rear Transition Modules)
• Remote Administration with built-in redundant Intelligent Shelf Managers (ISMs) providing communication for remote management and diagnostics enhancing system reliability

SCOPIA 400 Chassis

• High Capacity, High Performance:  4 slot chassis providing high scalability in a single compact chassis with a variety of available processing and connectivity Blades
• Carrier Class reliability with built-in, dual redundant power supplies and dual power feeds
• Guaranteed uptime with hot swappable blades that can be replaced without turning the system off

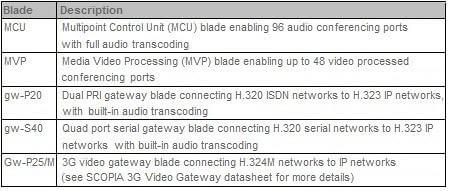

SCOPIA Blades
